ZM-5015 51mm fully pull-out heavy-duty three section steel ball slide rail
Share to
- 产品描述
-
Product parameters
Width 51mm Material Q235 high quality cold roll steel Carring capacity 68kg /18 inches Install method side mount Surface treatment blue and white zinc,electro phoretic black Size 8inch-40inch(200mm~1000mm) Thickness 1.5x1.5x1.5mm Feature full extension,heavy loading capacity,detachable Application: furniture using,ofice supplies,electrical toolcabinets and other heavy-duty drawers

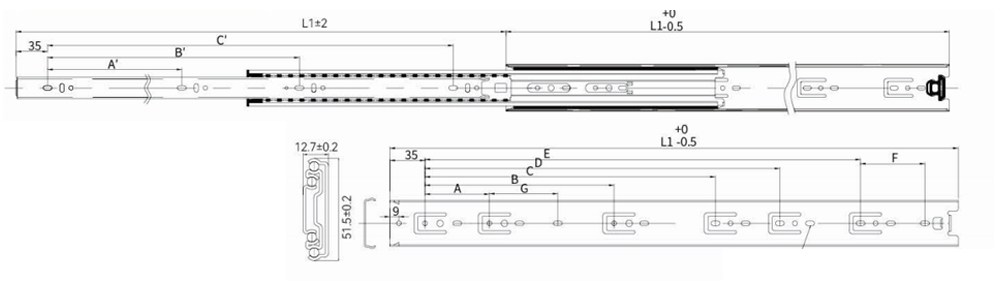

PRODUCT MODEL SIZE CLOSING LENGTH PULL OUT LENGTH HOLE PATTERN (UNIT:mm) A' B' C' A B C D E F G ZM5015-10" 250 251 160 - - 64 - 160 - - - - ZM5015-12" 300 311 96 208 - 64 - 192 - - 96 ZM5015-14" 350 362 128 256 - 64 - 224 - - ZM5015-16" 400 412 128 320 - 64 - 224 288 - ZM5015-18" 450 462 160 352 - 64 - 224 352 - ZM5015-20" 500 508 192 416 - 64 224 352 416 - - ZM5015-22" 550 566 224 448 - 64 224 352 - 416 64 ZM5015-24" 600 616 224 512 - 64 224 352 480 - - ZM5015-26" 650 666 256 544 - 64 224 352 512 - - ZM5015-28" 700 714 288 608 - 64 224 352 480 608 - ZM5015-30" 750 765 320 640 - 64 224 352 480 640 - ZM5015-32" 800 816 256 512 704 64 224 384 544 704 - ZM5015-34" 850 866 256 512 768 64 224 384 544 736 - ZM5015-36" 900 915 256 544 800 64 224 416 576 768 - ZM5015-38" 950 964 288 576 864 64 256 448 640 832 - ZM5015-40" 1000 1011 288 608 896 64 256 480 704 896 - Application scenarios
Furniture drawers and cabinet doors
Sliding rails are the core components of drawers, cabinets, wardrobes, and other furniture, providing a smooth opening and closing experience.
For example:
Steel ball slide rail: With strong load-bearing capacity, it has the function of buffering and closing, or pressing and rebounding, and is widely used in modern furniture.
Damping slide rail: Through hydraulic buffering technology, the drawer automatically decelerates when closed, avoiding impact, improving safety and durability, and is commonly used in high-end furniture.
Silent Slide: Designed with buffering and damping to reduce noise, suitable for quiet environments such as bedrooms and study rooms.Office equipment
Computer desk and filing cabinet: The slide supports drawers to be fully or partially pulled out, meeting different storage needs. For example, the fully pull-out slide provides more space for use, while the self-locking slide automatically locks when pulled out, improving safety.
Keyboard and monitor stand: The slide rail allows for horizontal or vertical movement, enhancing office comfort.Hidden storage
Sliding rails are used for hidden beds, adjustable tables, etc., to achieve maximum space utilization.
Company Profile
Baoding Vinisus Import and Export Trading Co., Ltd. is a source factory integrating R&D, production and sales of supporting engineering home decoration building materials and hardware. The transportation is convenient and the environment is beautiful. Mainly produce various types of hinges, hinges, slide rails, door stops and other furniture hardware accessories.
FAQ
Can you accept small quantities?
Yes, accept small quantity, fast delivery
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
What is the minimum order quantity?
It depends on the product.
